If you work with cooling towers, you have probably seen the terms cooling tower fill, cooling tower packing, and fill media used in different product catalogs. Are they the same thing? In most cases, yes. These terms generally describe the material installed inside a cooling tower to improve contact between air and water and help remove heat from circulating water.

However, the name is only the starting point. Film fill, splash fill, and different corrugated sheet designs can behave quite differently in real operating conditions. Choosing the wrong product may cause installation problems, excessive airflow resistance, or frequent cleaning. For cooling towers operating in Southeast Asia, where high temperatures, humidity, and biological growth can be common challenges, choosing the right fill is particularly important.

Whether you are replacing old packing, upgrading an existing cooling tower, or purchasing components for a new project, understanding the differences between fill designs will help you make a better decision.

What Is Cooling Tower Fill?

Cooling tower fill is the heat-transfer material installed inside a cooling tower. Its job is to spread water over a larger surface area or break it into smaller droplets, allowing more effective contact between water and air.

As hot water passes through the fill, air moves through the same section. Heat transfers from the water to the air, and evaporation removes additional heat from the circulating water. The cooled water then collects in the basin and returns to the industrial process or air-conditioning system.

Without suitable fill, water would pass through the tower with much less effective contact with air. The cooling tower would need to rely on a different configuration or a larger heat-transfer area to achieve the same duty.

Cooling Tower Fill vs Cooling Tower Packing

In everyday purchasing, cooling tower fill and cooling tower packing usually refer to the same general component. The preferred term may vary by manufacturer, country, or industry.

• Cooling Tower Fill: A widely used term for the heat-transfer material installed inside the tower.
• Cooling Tower Packing: Another common name for the assembled fill sheets, blocks, or packing media.
• Cooling Tower Media: A broad term that can describe fill products and other internal media used in cooling towers.
• Film Fill: A design that spreads water across sheet surfaces to create thin films.
• Splash Fill: A design that breaks falling water into smaller droplets using bars, grids, or other impact surfaces.

So, when a buyer asks for tower fill and another asks for cooling tower packing, they may be looking for the same product. The important question is what type of fill their cooling tower actually needs.

What Does Corrugated Fill Mean?

Corrugated Fill refers to fill material formed with ridges, grooves, or channels. These shapes help maintain spacing between sheets and guide water through the fill pack. Many film fill products use corrugated sheets, so Corrugated Fill and Film Fill are not necessarily two completely separate categories.

Different corrugation profiles, sheet spacing, and flute angles affect water distribution, contact area, airflow resistance, and the tendency for deposits to accumulate. Two products that look similar from the outside may therefore perform differently once installed.

Cooling Tower Fill Types by Tower Design

Before choosing a replacement product, identify whether the tower uses crossflow or counterflow airflow. The two arrangements have different internal layouts, and their fill blocks are not automatically interchangeable.

Counterflow Cooling Tower Fill

In a counterflow cooling tower, water moves downward while air travels upward through the fill. The opposing directions allow heat and mass transfer to take place as the two streams pass through the fill section.

Counterflow towers commonly use film fill made from formed plastic sheets assembled into blocks. The sheet geometry creates water channels while leaving space for air to move through the pack.

When replacing counterflow fill, check the existing block width, length, height, pitch, thickness, and support arrangement. The water distribution system above the fill is also important. A replacement that fits the available space but creates excessive airflow resistance may not deliver the expected cooling performance.

When Is Counterflow Film Fill Suitable?

Counterflow Film Fill is often suitable when the tower was designed for film media and the circulating water can be kept within the fill manufacturer's recommended cleanliness limits. It offers a large contact area within a compact volume.

For industrial applications, the selection should also account for water temperature, suspended solids, scale formation, and the required cooling duty. If the water contains heavy contamination, a more open fill design may be worth evaluating.

Crossflow Cooling Tower Fill

In a crossflow cooling tower, water moves downward while air travels horizontally through the fill. Many crossflow towers use a gravity-fed distribution basin above the fill, making uniform water distribution particularly important.

Crossflow film fill must match the tower's airflow path, support arrangement, and available installation space. Its sheet profile and block dimensions should be checked against the existing design before ordering a replacement.

Do not assume that counterflow and crossflow fill can be exchanged simply because their dimensions appear similar. Their internal flow arrangements and installation requirements can differ substantially.

Choosing Fill for an Existing Crossflow Tower

For replacement projects, original drawings, old fill samples, and clear photographs can help identify the correct design. If the original product is no longer available, customized dimensions may be possible, provided the new fill is suitable for the tower's thermal and airflow requirements.

For a crossflow replacement project, you can review our Crossflow Cooling Tower Heat Transfer Fill for product details and potential replacement options.

Film Fill vs Splash Fill

Film fill and splash fill achieve the same overall purpose through different methods.

Film fill spreads water across sheet surfaces, providing a large heat-transfer area within a relatively compact space. It is often selected when thermal performance and compact installation are important.

Splash fill breaks falling water into droplets as it hits bars, grids, or other surfaces. Its more open structure can be useful in applications where suspended solids or deposits make narrow film-fill passages difficult to maintain.

Neither design is automatically better for every cooling tower. The right choice depends on water quality, cooling requirements, available space, airflow conditions, and maintenance practices.

Common Materials Used in Cooling Tower Fill

Material selection affects temperature resistance, chemical compatibility, structural stability, and service life. The best option depends on the actual operating environment rather than the material name alone.

PVC Cooling Tower Fill

PVC is widely used for cooling tower film fill because it can be formed into thin sheets with consistent corrugated profiles. It is a common option for commercial HVAC systems and many industrial cooling towers operating within the material's specified limits.

For Southeast Asian projects, PVC may be a practical choice when the water temperature, chemical exposure, and operating conditions are suitable. However, not all PVC fill products have identical temperature limits or fire-performance characteristics. Always check the product specification before making a selection.

PP Cooling Tower Fill

Polypropylene, commonly known as PP, may be considered when operating temperatures or chemical conditions make standard PVC less suitable. The actual temperature limit depends on the material grade, sheet thickness, design, and mechanical loading.

PP Cooling Tower Fill is available in different configurations, including film fill designs. It may be useful for certain industrial applications, but the material should still be checked against the circulating water chemistry and operating temperature.

CPVC and Other Special Materials

CPVC can be considered for applications that require greater temperature resistance than standard PVC provides. Other materials or specially formulated plastics may also be appropriate for demanding chemical environments or projects with specific fire-performance requirements.

Before purchasing, ask the supplier to confirm continuous operating temperature, chemical compatibility, structural properties, and relevant documentation. Choosing a material based only on its initial price can lead to premature deformation or failure if the operating conditions are unsuitable.

Fill Structure, Sheet Pitch, and Block Assembly

Material is only one part of the design. Sheet pitch, corrugation geometry, flute angle, sheet thickness, and bonding quality also affect the performance and durability of the finished fill pack.

Corrugated Film Fill Structure

Corrugated film fill uses formed sheets to create repeated channels for water and air. The channels help distribute water across the available surfaces while maintaining space for airflow.

Narrow passages can provide a large heat-transfer area, but they may be more vulnerable to blockage by scale or suspended solids. Wider passages can be easier to maintain in some applications, although the resulting thermal performance must be checked for the specific tower.

Sheet Pitch and Thickness

Pitch describes the spacing or repeating geometry of the formed sheets. The exact measurement convention should be confirmed with the supplier because product designs may use different reference points.

Sheet thickness influences stiffness and handling strength, but thicker sheets do not automatically provide better cooling performance. A suitable design balances contact area, airflow resistance, structural strength, and resistance to fouling.

When ordering replacement Cooling Fill, provide the original pitch and sheet thickness if these details are available. If they are unknown, photographs, samples, or technical drawings can help the supplier assess the existing design.

Glued Fill Blocks and Multi-Section Assemblies

Many film fill products are assembled by bonding formed sheets into blocks. Correct bonding helps the pack maintain its shape during transport, installation, and operation.

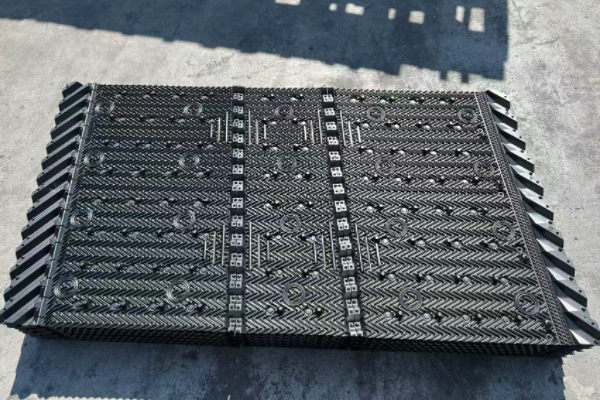

Some towers require fill to be supplied in multiple sections because of limited access or unusual internal dimensions. A multi-section arrangement can make handling easier, but the connection method must suit the product design and operating conditions.

Before confirming an order, check block dimensions, bonding requirements, support conditions, and the intended installation sequence. Properly sized blocks can reduce unnecessary cutting and installation difficulties on site.

How Cooling Tower Fill Affects Performance and Efficiency

Cooling tower fill has a significant influence on heat transfer, but it does not work alone. Fan performance, water distribution, ambient conditions, water treatment, and the tower's overall design also determine the final cooling result.

Heat Transfer and Water Distribution

Film fill works by spreading water into thin layers over the sheet surfaces. Uniform wetting helps make more of the available surface useful for heat transfer. If water collects in only a few channels, some of the fill area may be underused.

This is why fill selection should be considered together with the distribution basin or spray system, airflow conditions, and the required cold-water temperature. Improving one component cannot always compensate for problems elsewhere in the tower.

Airflow Resistance and Fan Energy

Air must pass through the fill to support evaporation and heat exchange. If the passages are too restrictive or become blocked by deposits, pressure drop may increase. Depending on the fan and system design, this can reduce airflow or increase the energy needed to maintain operating conditions.

However, choosing the most open fill available is not always the answer. An excessively open design may not provide the heat-transfer area needed for the required cooling duty. The goal is to balance thermal performance, airflow resistance, water quality, and operating costs.

Why High Efficiency Does Not Always Mean the Best Choice

A fill design that performs well under clean-water conditions may be less suitable for a tower handling heavily contaminated water. If its channels foul quickly, cleaning requirements and maintenance costs may outweigh the initial performance benefits.

When comparing products, consider how the fill will perform between cleaning cycles, not just its initial heat-transfer potential. If an existing tower is underperforming, investigate whether the cause is the fill, water distribution, airflow, or another component before deciding on an upgrade.

What to Check Before Buying Cooling Tower Packing

Before requesting a quotation, collect basic information about the existing tower. This helps the supplier recommend a suitable product rather than offering a standard block that may not fit or perform as required.

Confirm the Tower Type and Fill Design

• Is the tower crossflow or counterflow?
• Does it currently use film fill, splash fill, or another design?
• What are the existing block dimensions and installation arrangement?
• Is the fill damaged, deformed, blocked, or simply unable to meet the required cooling duty?

Check the Operating Conditions

• What are the normal hot-water and cold-water temperatures?
• What is the approximate circulating water flow rate?
• Does the water contain suspended solids, scale-forming minerals, oil, or biological contamination?
• Are there special requirements for chemical resistance, temperature, or fire performance?

Measure the Installation Space

Confirm the width, length, height, number of sections, support levels, and any openings or obstructions. For replacement work, also check whether the fill can pass through the available access doors and hatches.

If the original product is no longer available, custom sizing may be possible. However, matching the external dimensions alone does not guarantee equivalent performance. The sheet geometry, airflow resistance, thermal duty, and support conditions must also be considered.

Custom Sizing and OEM Cooling Tower Fill

Existing cooling towers do not always use standard fill dimensions. Older equipment, different tower manufacturers, and site-specific modifications can create unusual requirements. Customized fill can help accommodate these differences without requiring a complete tower replacement.

What Can Be Customized?

Depending on the product design and available manufacturing capabilities, customization may include sheet width, sheet length, block height, pitch, thickness, material, and assembly configuration.

For OEM projects, technical drawings or physical samples are useful starting points. If a drawing is unavailable, provide clear photographs and measured dimensions. Marking the airflow and water-flow directions can also help avoid misunderstandings.

Why Accurate Measurements Matter

Incorrect dimensions can result in excessive cutting, gaps between blocks, difficult installation, or interference with other tower components. These problems can become costly when replacement work must be completed during a short maintenance shutdown.

Before production, confirm the drawing, tolerances, material, quantity, and assembly method. If the tower contains several different fill sections, identify each section separately instead of assuming they all have identical dimensions.

For counterflow replacement projects, our Counter-Flow Cooling Tower Film Fill is another option to review when comparing suitable film fill configurations.

Daily Maintenance and Common Fill Problems

Even well-selected cooling tower fill needs proper maintenance. In hot and humid regions such as Southeast Asia, biological growth, mineral deposits, and airborne contamination can develop when water treatment and cleaning are not properly managed.

Check for Scale and Biological Growth

Inspect accessible areas for scale, slime, algae, and other deposits. If fill channels become blocked, water and air distribution may become uneven. Cleaning frequency should be based on water quality, operating history, and the manufacturer's recommendations.

Regular inspection can help identify water-treatment problems before they cause widespread fouling or a noticeable loss of cooling performance.

Look for Deformation and Structural Damage

Check whether sheets are sagging, separating, cracking, or losing their original shape. Possible causes include excessive deposits, unsuitable operating temperatures, poor support, material ageing, or improper installation.

If the fill is badly deformed, cleaning alone may not restore its original structure. Check the supporting grid and determine whether the damage is isolated or widespread before installing replacement material.

Inspect Water Distribution and Airflow

Uneven water distribution can leave parts of the fill underused. Blocked air inlets or fouled drift eliminators can also affect overall tower performance. Inspect these components together instead of assuming that every cooling problem originates in the fill.

Cooling Tower Air Inlet Louvers help manage incoming air and water splash, while drift eliminators reduce water droplets carried out with the exhaust air. These components perform different functions from the fill, but their condition contributes to the operation of the complete cooling tower.

Use Suitable Cleaning Methods

Follow the manufacturer's cleaning recommendations and the site's water-treatment procedures. Avoid aggressive chemicals, excessive mechanical force, or high-pressure washing that may damage plastic sheets or bonded joints.

After cleaning, check whether the fill remains securely assembled and properly supported. Recording recurring deposits and damage can help determine whether a different material or a more fouling-resistant design should be considered for the next replacement.

Should You Replace the Fill or Upgrade the Whole Tower?

When an existing cooling tower no longer provides the required cooling capacity, replacing the entire tower is not always the first option. If the structure, fan, water distribution system, and other components remain serviceable, fill replacement may be worth investigating.

However, identify the cause of poor performance before making a decision. Damaged or fouled fill may need replacement, but insufficient fan capacity, poor water distribution, excessive process heat load, or unsuitable operating conditions may require additional work.

Before upgrading from splash fill to film fill, check whether the existing tower can accommodate the new design's airflow resistance and water distribution requirements. Changing fill type should be treated as an engineering decision rather than a simple material substitution.

Frequently Asked Questions

Are cooling tower fill and packing the same thing?

In most applications, yes. Both terms generally refer to the material used to improve contact between circulating water and air. The actual product may be film fill, splash fill, or another packing design.

Is Corrugated Fill always film fill?

No. Corrugated describes the formed shape of the material. Many film fill products use corrugated sheets, but the term alone does not define the complete design or performance characteristics.

Is PVC or PP better for cooling tower fill?

Neither material is universally better. PVC is widely used under suitable operating conditions, while PP may be preferred for certain higher-temperature or chemically demanding applications. Check the specific grade, temperature limit, water chemistry, and mechanical requirements before deciding.

Can I replace the existing fill with a different design?

Sometimes, but the replacement must be checked for compatibility with the tower's dimensions, airflow, water distribution, support structure, and thermal duty. A similar-looking product is not necessarily a direct replacement.

Can cooling tower fill be made to custom dimensions?

Many products can be customized within the manufacturer's production capabilities. Provide dimensions, photographs, drawings, material preferences, and tower type so the supplier can assess a suitable solution.

How often should cooling tower fill be cleaned?

There is no single cleaning interval suitable for every tower. The schedule depends on water quality, airborne contamination, water treatment, operating hours, and fill design. Regular inspections help determine when cleaning is necessary.

Conclusion: Choose the Right Cooling Tower Fill for Your Application

Cooling tower fill and packing usually refer to the same general component, but products sold under these names can differ considerably in material, sheet geometry, dimensions, and performance. Understanding those differences is more useful than focusing on terminology alone.

For a new installation or replacement project, start by identifying the tower type, measuring the existing fill, and reviewing the operating water conditions. Then compare film fill and splash fill options based on heat-transfer requirements, airflow resistance, maintenance needs, and material compatibility.

For cooling towers operating in Southeast Asia, particular attention should be given to water treatment, biological growth, scale formation, and the temperature limits of the selected material. Suitable sizing and regular maintenance can help the fill provide reliable performance throughout its intended service life.

If you are sourcing cooling tower fill for a new project or replacing existing packing, prepare your tower dimensions, photographs, and operating requirements before requesting a quotation. This will help the supplier assess the application and discuss suitable standard or OEM options.
