When a cooling tower is not performing as well as expected, people often look at the fan, spray nozzles, water flow, or even the motor first. But in many cases, the Cooling Tower Fill inside the tower deserves a closer look.

The fill is where most of the water-to-air contact happens. A well-designed Corrugated Fill creates a large wetted surface, keeps water moving in a thin film, and gives air enough contact time to remove heat. A poor design can do the opposite: higher pressure drop, uneven water distribution, faster fouling, and lower cooling performance.

This is why the shape and structure of Film Fill are not simply a manufacturing detail. Corrugation angle, sheet spacing, fill height, surface pattern, material thickness, and pack arrangement all have an effect on how a cooling tower works.

In this guide, we will look at how corrugated fill is designed, how it works in different cooling tower types, what materials are commonly used, and what you should check before ordering replacement Cooling Tower Media.

What Is Cooling Tower Fill?

Cooling Tower Fill is the heat transfer media installed inside a wet cooling tower. Its main job is to slow down and spread the hot water while increasing the contact area between water and air.

In a normal cooling tower, hot circulating water enters the tower and is distributed over the fill. At the same time, air moves through the fill. As water flows over the fill surface, a portion of the water evaporates and carries heat away from the circulating water.

That sounds simple, but the actual performance depends heavily on the fill design.

A good Cooling Fill needs to provide enough surface area without creating unnecessary resistance to airflow. It also needs to maintain a stable water film and distribute water reasonably evenly across the available area.

Why Corrugation Is Used

A flat plastic sheet would not provide enough useful surface area for a compact cooling tower. Corrugation changes this.

The sheets are formed with a repeated wave or channel pattern. Adjacent sheets are normally arranged so that the corrugations create channels and contact points between the sheets. This increases the effective wetted area and helps disturb the water and air flow.

In practical terms, the corrugated structure is trying to achieve three things at the same time:

• Increase water-to-air contact area
• Improve mixing and turbulence
• Keep airflow resistance within a reasonable range

That balance is the key to good Film Fill cooling tower performance.

How Corrugated Fill Structure Affects Cooling Tower Efficiency

Not all corrugated sheets behave in the same way. Two fills can look similar from the outside but have different thermal performance because of differences in corrugation pattern, pitch, thickness, height, and sheet arrangement.

1. Corrugation Angle

The angle of the corrugation determines how water and air travel through the fill.

When adjacent sheets are arranged with different corrugation directions, the flow path becomes more complicated. This helps spread the water and creates additional turbulence. The result can be better heat and mass transfer compared with a simple straight channel.

However, making the flow path more complicated is not automatically better. Too much resistance can increase the fan power required to move air through the tower.

This is one of the important engineering trade-offs in Corrugated Fill design: more surface area and turbulence can improve heat transfer, but excessive resistance can reduce overall system efficiency.

2. Fill Pitch and Sheet Spacing

Fill pitch is another important parameter.

A smaller pitch generally provides more surface area within the same volume. This can be useful when a project requires high thermal performance from a limited fill volume.

But smaller passages can also be more sensitive to dirt, suspended solids, algae, scale, and biological growth.

For relatively clean water, a tighter structure can work very well. For industrial applications or open-loop systems with poor water quality, a more open Cooling Tower Media design may be a safer choice.

3. Fill Thickness

Sheet thickness affects mechanical strength, durability, weight, and resistance to handling damage.

Thicker sheets are not automatically more efficient. The correct thickness depends on the fill design, operating conditions, support method, water temperature, chemical environment, and required service life.

For replacement projects, it is usually better to match the actual tower requirements rather than simply asking for the thickest available material.

4. Fill Height

Fill height determines how much contact time is available between water and air.

A higher fill pack can provide additional heat transfer surface, but the complete tower design still needs to be considered. More fill does not always mean more cooling if the air distribution, water distribution, fan capacity, or fill loading is not suitable.

For this reason, fill height should normally be selected according to the required thermal duty rather than by using a standard size without checking the tower.

Corrugated Film Fill vs Splash Fill

There are two common approaches to cooling tower heat transfer media: Film Fill and splash fill.

Film Fill

Film Fill spreads water into a thin layer over the surface of the sheets. Because the water is distributed over a relatively large surface area, film fill can provide high heat transfer performance within a compact volume.

This is why PVC film fill is widely used in many modern cooling towers where the circulating water is reasonably clean.

Cross-corrugated film sheets are particularly common because the structure provides both surface area and controlled flow paths.

Splash Fill

Splash fill works differently. Instead of keeping water in a continuous film, splash bars or grids repeatedly break up and redistribute the falling water.

Products such as Splash Grid Fill are often considered when water quality is a concern or when a more open structure is required.

The choice between film and splash fill should therefore not be based only on cooling efficiency. Water quality, fouling risk, temperature, tower design, maintenance requirements, and available fill volume all matter.

Cooling Tower Fill Types by Cooling Tower Design

Counterflow Cooling Tower Fill

In a counterflow tower, water flows downward while air moves upward through the fill. The two streams move in opposite directions.

This arrangement makes Counterflow Film Fill a common solution where compact thermal performance is important.

The corrugated sheets are normally arranged to provide a controlled air and water path. The fill must provide enough surface area for heat transfer while keeping pressure drop within the capacity of the tower fan.

For counterflow replacement projects, pay particular attention to:

• Fill height and air travel
• Sheet spacing or pitch
• Fill block dimensions
• Water loading
• Airflow direction
• Support structure
• Operating water temperature

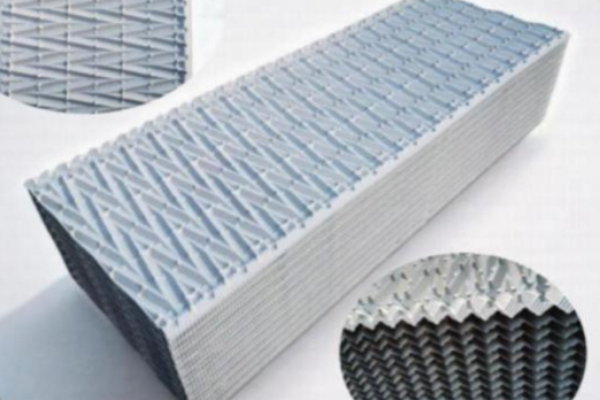

Crossflow Cooling Tower Fill

In a crossflow tower, water travels vertically downward while air moves horizontally through the fill.

Because the airflow direction is different, the fill structure and installation method are also different from many counterflow designs.

Crossflow Film Fill is commonly designed as hanging or supported fill. Some systems also combine film fill with integrated louvers and drift eliminators.

This type of arrangement can make inspection and maintenance easier, especially when access to the fill area is important.

Film Fill for Different Tower Applications

For industrial cooling towers, the most important question is not simply “Which fill has the highest efficiency?” A better question is “Which fill gives the required cooling performance without creating maintenance problems?”

For clean process water, high-efficiency film fill can be a good choice. For applications with suspended solids, biological growth, or high fouling potential, a more open film structure or splash fill may be more practical.

Common Cooling Tower Fill Materials

The material used for Tower Fill needs to match the operating environment. PVC is widely used, but it is not the only option.

PVC Cooling Tower Fill

PVC cooling tower fill is one of the most common choices for standard wet cooling tower applications.

PVC offers a useful combination of cost, formability, corrosion resistance, and mechanical performance. It can also be thermoformed into complex corrugated patterns required for film fill.

For normal-temperature applications with suitable water chemistry, PVC film fill is often a practical balance between performance and cost.

PP Cooling Tower Fill

PP Cooling Tower Fill is often considered when higher temperature resistance or specific chemical resistance is required.

Polypropylene can be a useful choice for industrial applications where standard PVC operating limits may not be suitable.

However, the exact temperature capability depends on the PP formulation, thickness, tower design, and operating conditions. Always check the actual continuous water temperature before selecting the material.

CPVC Cooling Tower Fill

CPVC can be selected for higher-temperature applications where PVC is not the best fit.

It usually costs more than standard PVC, so it makes sense to use it when the operating conditions actually require its additional temperature capability.

For high-temperature industrial projects, material selection should be discussed together with water chemistry and expected operating temperature rather than choosing the material from price alone.

How Fill Structure Affects Thermal Performance and Efficiency

When engineers talk about cooling tower efficiency, they are usually looking at the relationship between cooling duty, water flow, air flow, temperature difference, and power consumption.

The fill is only one part of this system, but it has a major influence on the air-water contact inside the tower.

More Surface Area Is Not Always Better

This is a common misunderstanding.

It is easy to think that a fill with a smaller pitch and more surface area must always perform better. In reality, the extra surface area can come with additional airflow resistance and a higher risk of fouling.

A practical fill design needs to balance:

• Heat transfer surface area
• Water distribution
• Air distribution
• Pressure drop
• Fouling resistance
• Mechanical strength
• Service life

For many real-world projects, a slightly more open fill that remains clean can outperform a very high-performance fill that becomes heavily fouled after a short period.

Water Distribution Matters Too

Even a very good Film Fill cannot compensate for poor water distribution.

If some areas of the fill receive too much water while other areas remain relatively dry, the available heat transfer surface is not being used efficiently.

That is why the fill should always be considered together with the spray nozzles, distribution basin, piping, airflow, and Cooling Tower Air Inlet Louvers.

Don't Forget Drift Eliminators

Drift Eliminators are installed to reduce the amount of circulating water carried out of the tower with the exhaust air.

They are not the same as fill, but they are part of the overall air and water management system. Their design can influence pressure drop, drift loss, and overall tower performance.

So when replacing tower fill, it is worth checking the condition of the drift eliminators and air inlet louvers at the same time.

What to Check When Buying Cooling Tower Fill

Buying cooling tower fill is not simply a matter of giving the supplier the length and width. For replacement projects, small differences in structure can cause installation or performance problems.

1. Confirm the Cooling Tower Type

First determine whether the tower is crossflow or counterflow.

Then confirm the existing fill type. It may be film fill, splash fill, hanging fill, block fill, or another configuration.

2. Measure the Existing Fill

Before ordering replacement Cooling Fill, measure:

• Overall length
• Overall width or depth
• Fill height
• Sheet thickness
• Pitch or spacing
• Corrugation angle
• Number of layers or blocks

Photos of the existing fill are also very helpful. In replacement projects, a clear photo can often tell an experienced supplier much more than a simple product name.

3. Check Operating Temperature

Temperature is especially important when choosing between PVC, PP, and CPVC.

Do not choose the material only because another tower uses it. Check the actual hot-water temperature entering the fill and the expected operating range.

4. Check Water Quality

If the circulating water contains a high level of suspended solids, scale-forming minerals, oil, biological matter, or other contaminants, a very tight film fill may not be the best choice.

In these cases, an open corrugated design or Splash Grid Fill may provide a better balance between cooling and maintenance.

5. Check the Fan and Airflow

Fill replacement should not be treated as an isolated component change.

If the new fill creates substantially different airflow resistance, the existing fan system may not operate at the same point.

This is particularly important when upgrading an old tower with higher-density film fill.

Standard Size or Custom Cooling Tower Fill?

For maintenance and replacement projects, standard sizes are convenient, but they are not always the best solution.

Cooling towers from different manufacturers and different generations can use different fill dimensions. Even towers with similar capacities may have different fill heights, support arrangements, and air travel requirements.

Custom Cut-to-Size Fill

Custom Tower Fill can be supplied according to the actual dimensions of the tower.

Depending on the project, customization can include:

• Length
• Width
• Height
• Sheet thickness
• Pitch
• Corrugation pattern
• Material
• Pack configuration

This can be especially useful for replacement projects in Southeast Asia and the Middle East, where cooling towers may have been operating for many years and original spare parts are no longer easy to source.

OEM and Replacement Applications

A good replacement fill does not necessarily have to come from the original tower manufacturer. What matters is whether the replacement matches the tower's thermal, dimensional, mechanical, and installation requirements.

Before production, it is better to confirm the tower model, existing fill dimensions, operating conditions, and installation method.

For overseas customers, providing drawings, photos, samples, or old fill dimensions can make the quotation and production process much easier.

Cooling Tower Fill Maintenance Tips

Even the best Cooling Tower Media will lose performance if it is badly fouled.

Regular inspection is especially important in warm and humid climates. Southeast Asian cooling towers can experience rapid biological growth when water treatment and cleaning are not properly controlled.

Inspect the Fill Regularly

Look for:

• Algae and biological growth
• Scale deposits
• Mud and dirt
• Blocked passages
• Broken or deformed sheets
• Uneven water distribution
• Excessive debris accumulation

Industry maintenance guidance commonly recommends regular inspection of fill for obstruction, damage, and fouling, with cleaning methods selected according to the material and type of fouling. :contentReference[oaicite:1]{index=1}

Keep the Water Distribution System Clean

Cleaning the fill alone is not enough.

Blocked nozzles or uneven water distribution can create dry areas and overloaded areas inside the fill. Check the spray nozzles, distribution pipes, and basin regularly.

Do Not Use Excessive Cleaning Pressure

Plastic film fill is relatively thin compared with structural components of the tower. Aggressive mechanical cleaning or unsuitable high-pressure cleaning can damage the sheets.

Use a cleaning method recommended for the specific material and fill design.

Monitor Cooling Performance

Do not wait until the tower becomes obviously dirty before checking performance.

Track entering water temperature, leaving water temperature, ambient wet-bulb temperature, water flow, fan operation, and other available operating data. A gradual change in cooling performance can be an early warning that the fill or water distribution system needs attention.

Corrugated Fill Design for Southeast Asian and Middle Eastern Applications

Climate and water quality should be considered when selecting Cooling Tower Fill.

In Southeast Asia, high ambient humidity, warm temperatures, biological growth, and variable water quality can create additional maintenance challenges.

In Middle Eastern applications, high ambient temperatures, dust, mineral content, and water treatment conditions can be more important factors.

For these environments, the highest-density film fill is not automatically the best answer. A design with reasonable heat transfer performance and better fouling resistance may provide more stable long-term operation.

For customers in Japan and Korea, seasonal operating conditions and different industrial water-quality requirements should also be considered when selecting PVC, PP, or CPVC fill.

Can Corrugated Fill Improve an Old Cooling Tower?

Sometimes, yes.

If an existing cooling tower has damaged, aged, or badly fouled fill, replacing it with a properly selected modern Corrugated Fill can restore lost thermal performance.

But a fill replacement should not be treated as a guaranteed capacity upgrade. The final result depends on the tower structure, fan capacity, water distribution, air distribution, operating conditions, and the actual condition of the old equipment.

Before changing to a different fill design, check whether the existing support system and airflow path can accommodate the new fill.

In some retrofit projects, upgrading related components such as Cooling Tower Air Inlet Louvers and Drift Eliminators at the same time can also make sense.

Corrugated Fill Selection Checklist

If you are replacing or purchasing cooling tower fill, the following checklist is a good starting point:

• Cooling tower type: crossflow or counterflow
• Existing fill type: film or splash
• Required fill dimensions
• Fill height and air travel
• Corrugation angle and pitch
• Material: PVC, PP, or CPVC
• Operating water temperature
• Water quality and fouling potential
• Water flow rate
• Airflow and fan capacity
• Existing support structure
• Required thermal performance
• Installation and maintenance access

If you are not sure which fill is suitable, providing the old fill dimensions and a few photos is usually the easiest way to start.

Final Thoughts: Good Fill Design Is About Balance

A good Corrugated Fill design is not simply the fill with the most complicated pattern or the smallest pitch.

The real goal is to create enough water-air contact for effective heat transfer while keeping airflow resistance, fouling risk, material cost, and maintenance requirements under control.

For clean-water applications, high-performance Film Fill can provide excellent heat transfer in a relatively compact space. For applications with higher fouling risk, a more open film structure or Splash Grid Fill may be more practical.

PVC remains a common choice for standard applications, while PP Cooling Tower Fill and CPVC can be considered when temperature or chemical conditions require a different material.

Most importantly, don't choose Cooling Tower Fill by size or price alone. The corrugation structure, fill spacing, material, airflow, water loading, and actual tower configuration all need to work together.

For replacement or retrofit projects, custom Cooling Tower Media can often be produced to match the existing tower dimensions. If you have an old fill pack that needs replacement, prepare the fill dimensions, material if known, tower type, operating temperature, and a few clear photos. These details can make it much easier to select the right Film Fill or Cooling Fill for the job.

Frequently Asked Questions About Corrugated Cooling Tower Fill

What is corrugated cooling tower fill?

Corrugated cooling tower fill is a type of heat transfer media made from formed plastic sheets with repeated corrugation patterns. The structure spreads water over the sheet surface and creates air and water flow paths to improve heat transfer.

What is the difference between film fill and splash fill?

Film fill spreads water into a thin film over the surface of the sheets, while splash fill repeatedly breaks and redistributes falling water using bars or grids. Film fill normally provides more water-air contact area per unit volume, while splash fill can be more suitable for applications with higher fouling potential.

Is PVC or PP better for cooling tower fill?

Neither material is universally better. PVC is commonly used for standard-temperature applications because of its cost and performance balance. PP can be considered for higher-temperature or specific chemical environments. The correct material depends on actual operating conditions.

Can cooling tower fill be customized?

Yes. Cooling tower fill can be manufactured or cut to specific length, width, height, thickness, pitch, material, and pack configuration depending on the product design and application.

How often should cooling tower fill be inspected?

Regular inspection is recommended, with the actual frequency depending on water quality, operating environment, fouling risk, and tower design. In warm climates or applications with heavy fouling, more frequent inspection may be necessary.
